ARC 400 G Riland

  • Availability: In Stock

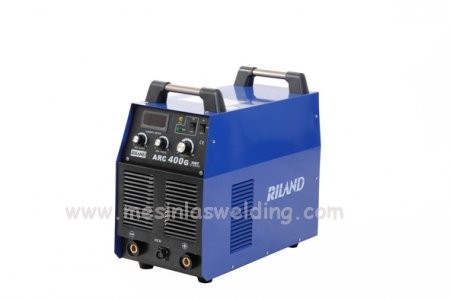

ARC Inverter Welding Machine (ARC 400 G) IGBT

Function and feature
* Has the Auto-compensation function to mains voltage fluctuation. Powerful ability in anti-fluctuations of mains.
* Welding current stable and reliable. Good arc force compensation.
* Auto over-voltage and over-current protection function.
* Reliable performance, small dimension, low-weight, high efficiency and energy saving.
* Acidic and alkaline welding rods of various brands can be used for welding.

PRODUCT DESCRIPTION
INPUT VOLTAGE ........................................ AC 380V±15%
FREQUENCY ............................................. 50/60 Hz
RATED INPUT CURRENT  ..............................27.6 A
NO LOAD VOLTAGE ................................... 68 V
OUTPUT CURRENT RANGE ........................... 30-400 A
RATED OUTPUT VOLTAGE ........................... 36 V
DUTY CYCLE ............................................ 60 %
NO-LOAD LOSS ....................................... 100 W
EFFICIENCY ............................................ 91 %
 POWER FACTOR....................................... 0.93
INSULATION GRADE................................... F
PROTECTION GRADE.................................. IP21
NET WEIGHT ........................................... 33 Kg
DIMENSION ............................................ 560X300X480 mm
PLATE THICKNESS ................................... 2.0-20.0 mm
WELDING ROD DIAMETER ......................... 2.5-4.0 mm
APPLICATION BASE FOR CARBON STEEL, STAINLESS STEEL, LOW-ALLOY STEEL
