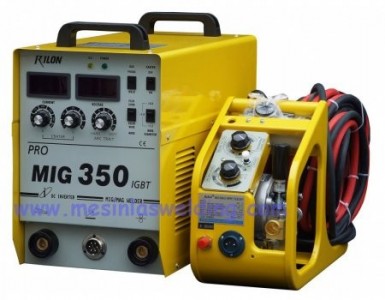

Rilon MIG 350

  • Availability: In Stock

Inverter MIG/CO2 Welding Machine MIG 350

Features :

  1. By adopting the technology of HF inverters with IGBT module, the inverting frequency can reach as high as 20 kHZ Quick response.
  2. PWM control, high quality and stable performances
  3. Digital display of welding current and voltage. Easy and convenient to use
  4. Self-adjustment of welding currents within 30 mm of stretching length. Suitable for changing welding positions.
  5. Stable welding process, high resistance to power fluctuation (310-450V)
  6. Application base for carbon steel, stainless steel, low-alloy steel

.

Input voltage................... AC 380V ±15%
Frequency....................... 50/60 Hz
Rated input current........... 21.1 A
Output current range......... 50-350 A
Output voltage................ 16-36 V
Duty cycle...................... 60 %
Power factor................... 0.93
Efficiency...................... 85 %
Wire-feeding speed......... 3­15 m/min
Welding-wire diameter..... 1.0/1.2 mm
Insulation grade............. F
Housing protection grade.. IP21
Applicable plate thickness.. 1.0mm Above
Output cable................... 35 mm²
Above net weight............. 28 Kg
External dimension........... 515x265x405 mm
Wire diameter (ф)........... 1.0/1.2 mm
Current range................. 50-350 A
